Product Information :

Name :
เครื่องเจาะรูเล็กขึ้น collar
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. เครื่องมือช่าง
Product Type :
  1. เครื่องมือ, เครื่องจักรและอุปกรณ์
Short Description :
Equipment composition: The device can realize combining digging and flanging. Consists of a body Position mounting mechanism drilling rig mechanism Eccentric rotation mechanism Special flanging bit, pneumatic system and electronic control system 2. Main use equipment: This equipment is mainly suitable for drilling and flanging pipe pieces at one time. The workpiece is positioned by manual clamping. The device can automatically realize drilling and flanging. Integration functions

Product Detail :

  Technical parameters requirements

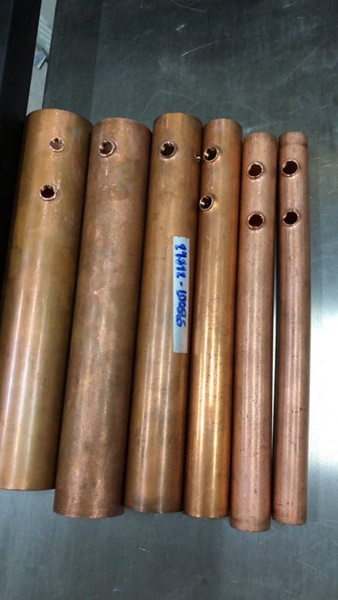

       Forming requirements for flanging holes : After flanging hole forming, the inside and outside burrs; without inside burrs, the outside burrs are less than 0.2mm, and the qualified rate of hole processing of non-adherent copper sheets must be above 98%. For the case of adherent copper sheets, the problem of how to remove adherent copper sheets in burring process should be solved.

Roundness Requirements for Inner Diameter of Flanging Hole

    The difference between the maximum diameter and the minimum diameter of flanging hole is less than 0.1 mm.

Outer Surface Requirements for Flanging Hole Position

    The surface is smooth and the height difference is less than 0.1mm

Size requirement

    The equipment can realize the fast positioning of pipeline parts. It has the functions of positioning size, angle adjustment, positioning and reading. The deviation of angle positioning is less than 3 o, and the deviation of dimension positioning is less than 1 m.
