E-Catalog > เครื่องมือวัด ทดสอบ และควบคุม > เครื่องทดสอบอเนกประสงค์เซอร์โว - ไฮดรอลิก(Worm Gear Drive Crosshead)

         SUNS WAW - W series UTM with a bi -space structure, a worm gear drive crosshead and actuator mounted on the base. Applicable for testing the mechanical properties of materials such as metal rods, metal sheets, rebars, threaded steel, steel strands, fasteners, rocks, geotextiles, and concrete. By changing proper grips and fixtures, they can perform static tests including tension, compression, bending, shearing, and splitting, as well as low -frequency fatigue tests. Widely used in material science and engineering, construction engineering, civil engineering, bridges engineering, tunnel engineering, and other fields.

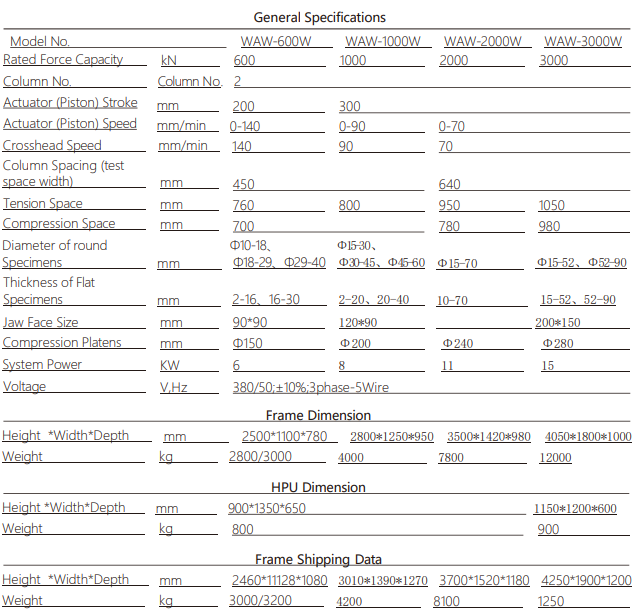

Common Specifications:Position Measurement Accuracy: ±0.02 mm or 0.05% of displacement (whichever is greater) Crosshead Speed Accuracy (Zero or constant load): ±0.1% of set speed Load Measurement Accuracy: ±0.5% of reading down to 1/100 of load cell capacity Strain Measurement Accuracy: ±0.5% of reading down to 1/50 of full range with ASTM E83 class B or ISO 9513 class 0.5 extensometer Operating Temperature: -10 ° C to +38 ° C (+14 ° F to +100 °F); Storage Temperature: -40 ° C to +66 ° C ( -40 ° F to +150 °F); Humidity Range: +10% to +90%, non -condensing Atmosphere: Designed for use under normal laboratory conditions. Protective measures may be required if excessive dust, corrosive fumes, electromagnetic Þeld or hazardous conditions are encountered.

Notes:

1. All systems force measurement meets or surpasses the following standards: ASTM E 4, BS 1610, DIN 51221, ISO 7500 -1, EN10002 - 2 . SUNS recommends the systems are veriÞed on site at the time of installation as required by ASTM E 4 and ISO 7500 - 1 standards.

2. Strain measurement system meets or surpasses the following standards: ASTM E 83, BS 3846, ISO 9513, EN 10002 -4.

3. Contact us for details of Extra high or wide load frames and extra high or low speed drive systems.

4. All systems conform to all relevant European standards and carry a CE mark.

5. All of the speciÞcations shown above are subject to change without notice

*If you are interested in the product or have any questions, you can contact us at the address below.*

TCC ADVANCE TECH (THAILAND) CO., LTD.

104/ 107 Moo 12, Soi Rattanachock 12,Tanasit Road, T.Bangpra,A.Bangplee Samutprakan 10540.Thailand.

Tel : (66) 0-2174-6034~5 (อัตโนมัติ).

Mobile : 097-117-8657 (Sale 1)

Mobile : 086-355-7856 (Sale 2)

E-Mail : tcc.sale3@gmail.com
